Overview

  • Ready to connect to NTD (Network Termination Device) of NBN (Aust) and UFB (NZ)
  • Multi-WAN for Failover, Load Balancing and High Availability mode
  • 1 x fixed GbE WAN port (P1)
  • 1 x 10GbE WAN/LAN port (P3)
  • 1 x fixed SFP+ WAN port (P2)
  • 1 x 10GbE SFP+ LAN slot (P4)
  • For P2~P4, any two of these three ports can be used simultaneously, and P3 can also be configured as a high-speed LAN port when not serving as the WAN
  • 1 x fixed 2.5GbE LAN port (P5)
  • 3 x fixed GbE LAN ports (P6~P8)
  • 2 x USB 2.0 ports for connection to two 4G LTE USB modems, FTP server, network printer and thermometer
  • Up to 8 subnets and 60,000 NAT sessions
  • 50 x VPN tunnels, including IPsec, OpenVPN, and WireGuard, with EasyVPN features that simplify VPN setup for effortless connectivity
  • Integrated IEEE 802.11be (Wi-Fi 7, BE7200) wireless Access Point, with 4×4 MU-MIMO, dual band, up to 1376 Mbps for the 2.4 GHz band and 5764 Mbps for the 5 GHz band
  • IPsec VPN throughput up to 540 Mbps (AES 256 bits)
  • WireGuard VPN throughput up to 85 Mbps
  • Object-based SPI Firewall, Content Security Management (CSM), URL/IP Reputation and Port Knocking
  • IAM (Identity and Access Management) to enhance security management and user experience
  • IPv6 & IPv4
  • Virtual AP Controller for the deployment of up to 20 wireless VigorAPs
  • Virtual Switch Controller to manage up to 10 VigorSwitches
  • Supports VigorACS 3 Central Management Software for remote management
  • 2 years back to base warranty

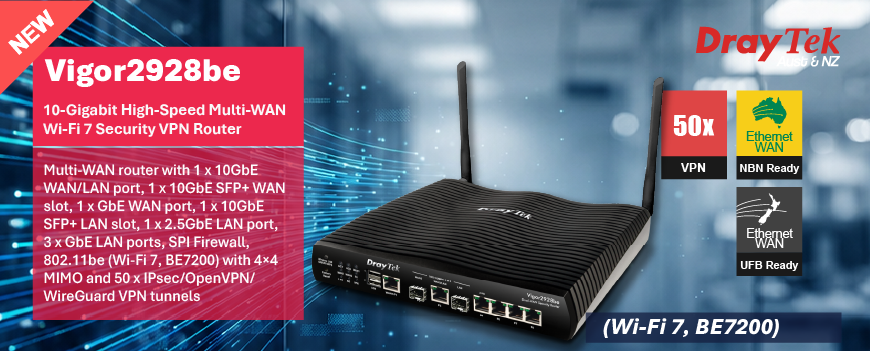

10-Gigabit High-Speed Multi-WAN Wi-Fi 7 (be model) Security VPN Routers

Apart from the Gigabit Ethernet WAN port (P1) for broadband services that use an Ethernet interface (such as UFB in New Zealand or FTTP, FTTC, HFC, Satellite, and Fixed Wireless in Australia), all models feature a triple-combo port with two additional WAN options: a 10GbE SFP+ WAN slot (P2), a 10GbE Ethernet WAN/LAN port (P3), and a 10GbE SFP+ LAN slot (P4). Any two of these three ports can be used simultaneously, and port P3 can also be configured as a high-speed LAN port when not serving as the WAN. 4G LTE connectivity is also featured (via an attached 4G USB modem), and Wireless WAN (be model); all WAN interfaces can be configured for use in Load Balance mode or Failover mode.



The Vigor2928be features 802.11be (Wi-Fi 7, BE7200) with 4×4 MIMO (1376 Mbps for the 2.4 GHz band and 5765 Mbps for the 5 GHz band).

Equipped with Object-based SPI Firewall, Content Security Management (CSM), URL/IP Reputation and Port Knocking, IPv6, 50 simultaneous IPsec/OpenVPN/WireGuard VPN tunnels, Tag-based VLAN, multiple subnets and a set of traffic management features, these routers are an excellent choice for SMB.

Central Management features provide a centralised console to manage networks, including Virtual AP Controller to configure and manage up to 20 DrayTek wireless Access Points, and Virtual Switch Controller to configure and manage up to 10 DrayTek switches.

These routers can be mounted using a 1RU rack-mount bracket (DR101) on a standard 19” rack or cabinet.

10GbE WAN/LAN Switchable

10M/100M/1G/2.5G/10G
Ethernet, RJ-45



10GbE SFP+ Slot

1G/10G SFP Slot



50 x VPN tunnels

IPsec throughput up to 540 Mbps



60k NAT sessions

Recommended for a network of up to 50+ devices



Interface

Vigor2928be interface and port layout
12x Wi-Fi Antenna (External)
1x Wi-Fi Antenna (Internal)
2Reset Button
3LED Indicator
42x USB 2.0
5Fixed WAN Port: 1x GbE RJ-45
6Fixed WAN Port: 1x 10GbE SFP+*
7WAN/LAN Switchable Port: 1x 10GbE RJ-45*
8Fixed LAN Port: 1x 10GbE SFP+*
9Fixed LAN Port: 1x 2.5GbE RJ-45
10Fixed LAN Port: 3x GbE RJ-45
11Power On/Off Switch
12Power Input

*Only two of these ports can be active at the same time, and P2 & P3 cannot both act as WAN

10 Gigabit for Next-Generation Connectivity

The Vigor2928 is a high-performance Multi-WAN VPN router, delivering ultra-fast 10GbE connectivity through three versatile interfaces. It features advanced capabilities including VPN, QoS, route policy, web content filtering, and a hotspot web portal, making it an ideal solution for modern business networks.



The series includes a built-in 802.11be model which offers Wi-Fi 7 features such as Multi-Link Operation (MLO) and Multiple Resource Units (MRU). It is ideal for companies that require high-performance 10G connectivity with an efficient network.

*VPN acceleration future supported

Multiple 10GbE WAN Load Balancing

WAN Load Balancing

Vigor2928 offers high throughput with load balancing, making it ideal for fibre and 10 Gigabit Internet. All active WAN interfaces join the Load Balance Pool to optimise bandwidth utilisation

Seamless Failover

Supports automatic WAN failover to maintain seamless internet connectivity during ISP outages, reducing downtime and associated costs.

Policy-Based Routing

Routing policies allows user to assign specific WAN interfaces to applications, VoIP, or traffic by source or destination, enhancing network efficiency and performance.
