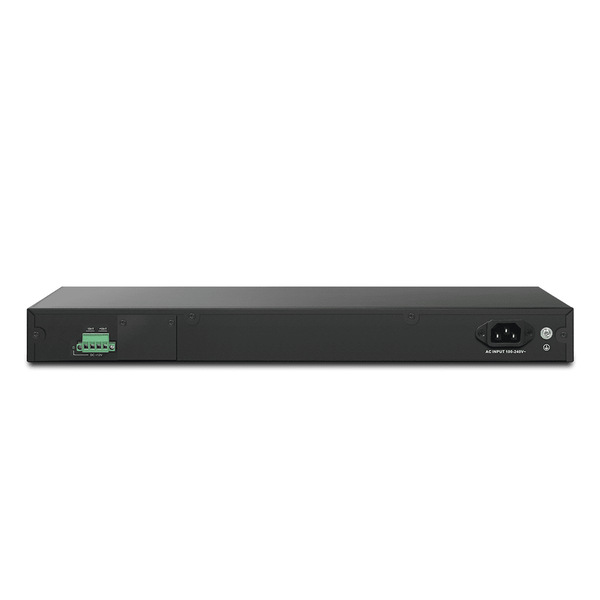

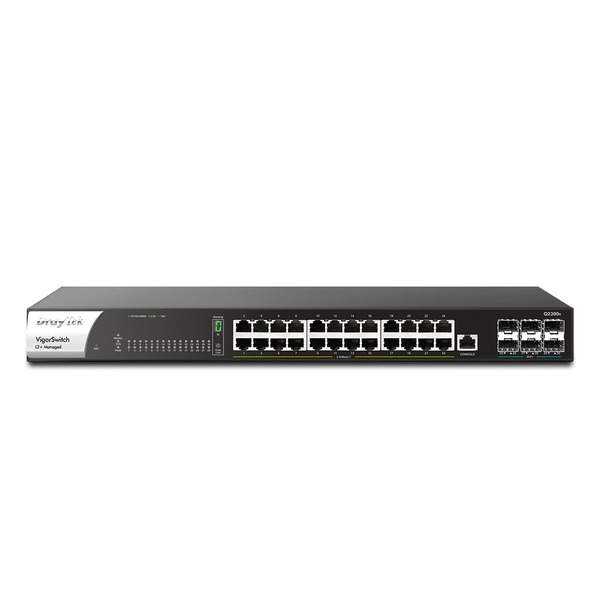

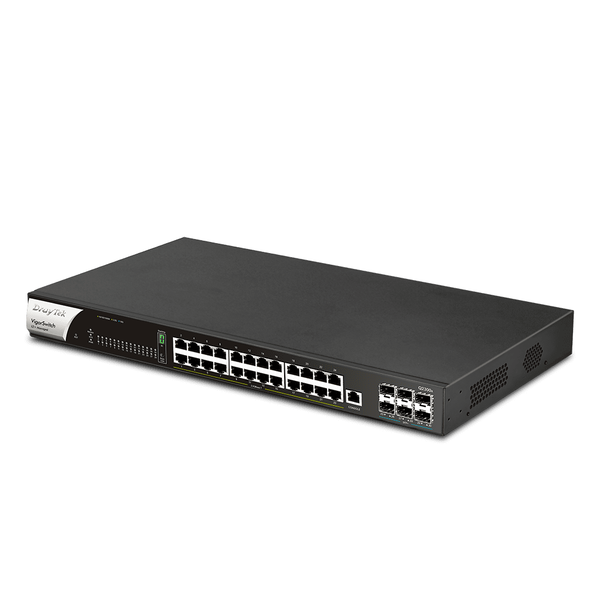

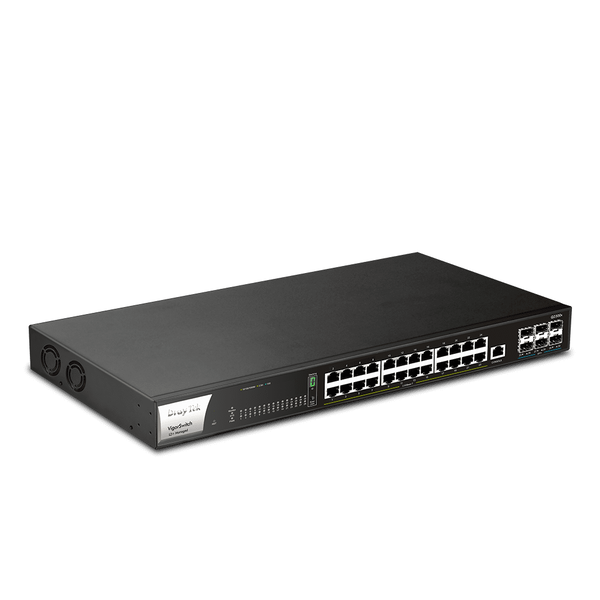

VigorSwitch Q2300x
DSQ2300x
- Layer 2+ Managed Gigabit Switch
- 240 Gbps switching capacity
- 802.1q tagged VLANs (MAC address, and protocol)
- Voice and Surveillance VLANS providing improved call and video quality
- QoS with 8 queues for traffic prioritisation
- Enterprise-Level security features
- Support IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver
- Authentication by local database, multiple RADIUS, and TACACS+ servers
- IEEE 802.3az (Energy-Efficient Ethernet) Compliant
- Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
- Port Mirroring & Link Aggregation
- 1 x RJ-45 console port
- Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management Learn more
- Compliant with VigorConnect free software for local network management Learn more
- Supports VigorACS 3 Central Management Software for remote management
- Stackable up to four VigorSwitches (Line, Ring)
- 2 years back to base warranty
Performance
Buffer Size
16 Mbit
Switching Capacity
240 Gbps
Forwarding Rate (64 bytes)
178.56 Mpps
MAC Address Table
32k
Jumbo Frame (MAX)
12 KB
L3 Routing Table
No, I want to amend it.
Number of Ports
2.5 GbE Ports
32
SFP+ (10G) Ports
6
Console Port
1
LAN
Spanning Tree
- STP ,
- RSTP ,
- MSTP
LACP (Max. Group Number / Max. Number in each group)
8 / 8
[Switch] - ONVIF Surveilance
No, I want to amend it.
VLAN
Tag-Based VLAN
No, I want to amend it.
MAC-Based VLAN
No, I want to amend it.
Voice & Surveilance VLAN
No, I want to amend it.
GVRP
No, I want to amend it.
QinQ (Basic)
No, I want to amend it.
Layer3 Features
Static Route
No, I want to amend it.
VLAN Route
No, I want to amend it.
DHCP Server
No, I want to amend it.
Security
IP Conflict Detection & Prevention
No, I want to amend it.
IP Source Guard
No, I want to amend it.
Access Control List
No, I want to amend it.
802.1X/MAC Authentication
No, I want to amend it.
Dynamic ARP Inspection (DAI)
No, I want to amend it.
DHCP Snooping
No, I want to amend it.
Taffic Control
- Storm Control ,
- DoS Defense
Muticast
IGMP Snooping
v2, v3(BISS)
MLD Snooping (Basic)
v1, v2
Management
sFlow
No, I want to amend it.
SNMP
v1, v2c, v3
LLDP
No, I want to amend it.
LLDP-MED
No, I want to amend it.
Managed by Vigor Router
No, I want to amend it.
Managed by VigorConnect
No, I want to amend it.
Managed by VigorACS
No, I want to amend it.
