VigorAP 1070C
DAP1070C
- Concurrent Tri-Band 802.11be with Multi-link Operation
- 4x Internal DB + 4x Internal 6G + 1x Internal 5G (for Zero-DFS scanning)
- Wi-Fi link speeds up to 11530 Mbps for 6GHz, 5765 Mbps for 5GHz band and 1376 Mbps for 2.4GHz band

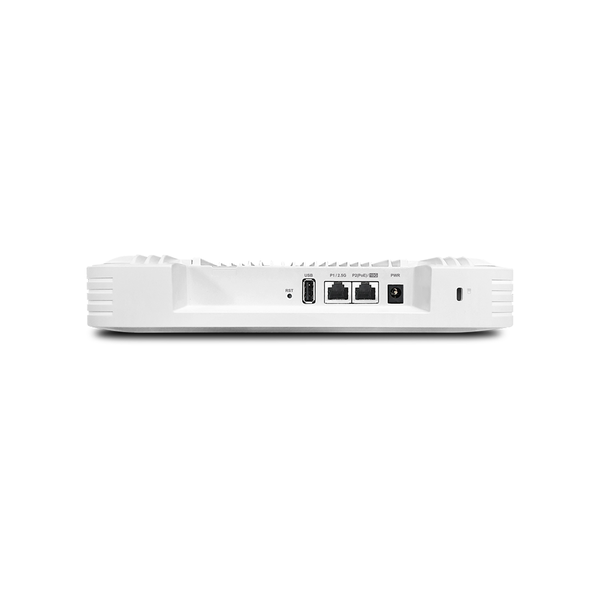

- 1 x 10GbE LAN port (PoE-PD)
- 1 x 2.5GbE LAN ports + 1 x USB 2.0 Port
- Features AirTime Fairness and Band Steering for a better Wi-Fi user experience
- 8 SSIDs for each Wi-Fi band with unique VLAN settings
- Up to 128 MAC address filter per SSID
- Improve roaming experience by Fast Roaming & AP-assisted Roaming
- Multiple operating modes – AP, Mesh (Mesh Root or Mesh Node) and Range Extender
- Plug-n-Play Meshing
- Built-in Diagnostic Tool (AP Discovery, Ping, Traceroute, Internet Detection, Client List)
- Supports VigorACS 3 Central Management Software for remote management
- Virtual AP Controller for the deployment of up to 50 wireless VigorAPs
- Manageable from a Smartphone or Tablet using the DrayTek Wireless App. Learn More
- 2 years back to base warranty
Capacity
2.4G Max. Link Rate
1376 Mbps
5G Max. Link Rate
5765 Mbps
6G Max. Link Rate
11530 Mbps
Ma. Clients (per band)
512
Physical
Environment
Indoor
LAN Switch
1 x 2.5 GbE and 1 x 10 GbE PoE-PD
USB Port
1 x USB 2.0
Power Input
DC / PoE++
PoE Out
Antenna
- 1 x Internal 5G ,
- 4 x Internal 6G ,
- 4 x Internal DB
Mounting
Wall / Ceiling
Wireless Standard
2.4 GHz Standard
802.11 b/g/n/ax/be
5 GHz Standard
802.11 a/n/ac Wave 2/ax/be
6 GHz Standard
802.11ax/be
Key Features
AP-Assisted Roaming
✔
AirTime Fairness
✔
Band Steering
✔
Max. Number of SSID (per band)
24 (8)
802.1q tag-based VLAN
✔
Built-in RADIUS Server
✔
Management
Stand-Alone Operation
✔
Mesh
Root, Node
Managed by Vigor Router
✔
Managed by VigorConnect
Managed by VigorACS
✔
