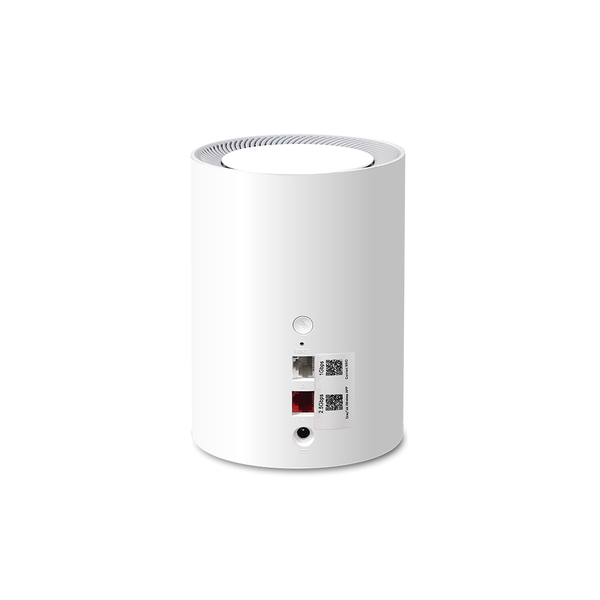

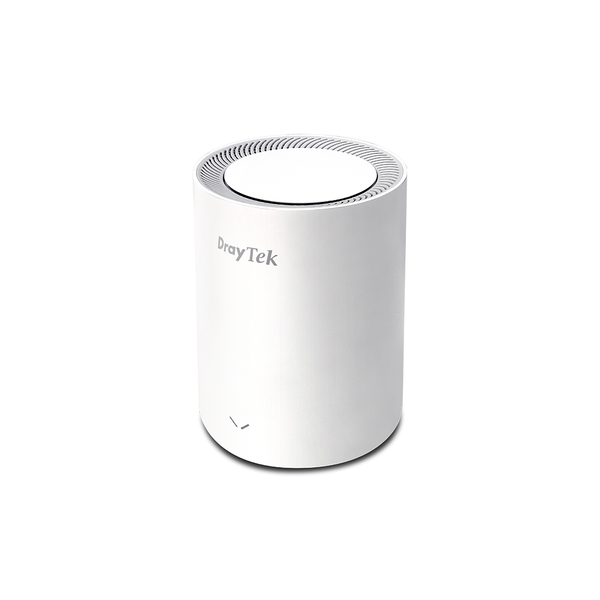

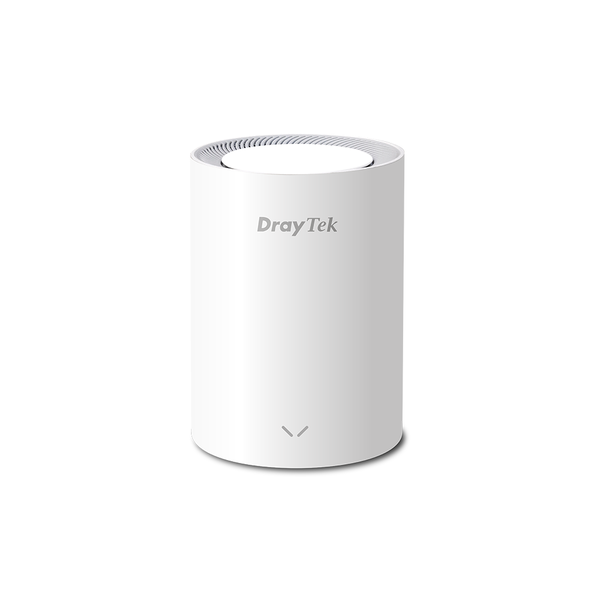

VigorAP 805
DAP805
- 5x Internal iPA (2x 2.4G + 3x 5G)
- Dual-band 802.11ax
- 1 x GbE and 2.5 GbE LAN ports
- 16 SSIDs (8 per radio band)
- AP-assisted Roaming
- Airtime Fairness
- Band Steering
- Plug-n-Play Meshing
- Supports up to 20 APs for Virtual AP Controller
- Supports VigorACS 3 Central Management Software for remote management
- Supports VigorConnect free software for local network management
- Manageable from Smartphone or Tablet using DrayTek Wireless App
- 2 years back to base warranty
Capacity
2.4G Max. Link Rate
600 Mbps
5G Max. Link Rate
2400 Mbps
Ma. Clients (per band)
256 (128)
Physical
Environment
Indoor
LAN Switch
1 x GbE and 1 x 2.5 GbE
Power Input
DC
PoE Out
Antenna
- 5x Internal iPA (2x 2.4G + 3x 5G)
Mounting
Desktop
Wireless Standard
2.4 GHz Standard
802.11 b/g/n/ax
5 GHz Standard
802.11 a/n/ac Wave 2/ax
Key Features
AP-Assisted Roaming
No, I want to amend it.
AirTime Fairness
No, I want to amend it.
Band Steering
No, I want to amend it.
Max. Number of SSID (per band)
16 (8)
802.1q tag-based VLAN
Built-in RADIUS Server
Management
Stand-Alone Operation
No, I want to amend it.
Mesh
Root, Node
Managed by Vigor Router
No, I want to amend it.
Managed by VigorConnect
No, I want to amend it.
Managed by VigorACS
No, I want to amend it.
